DT-CP02U05X00AC

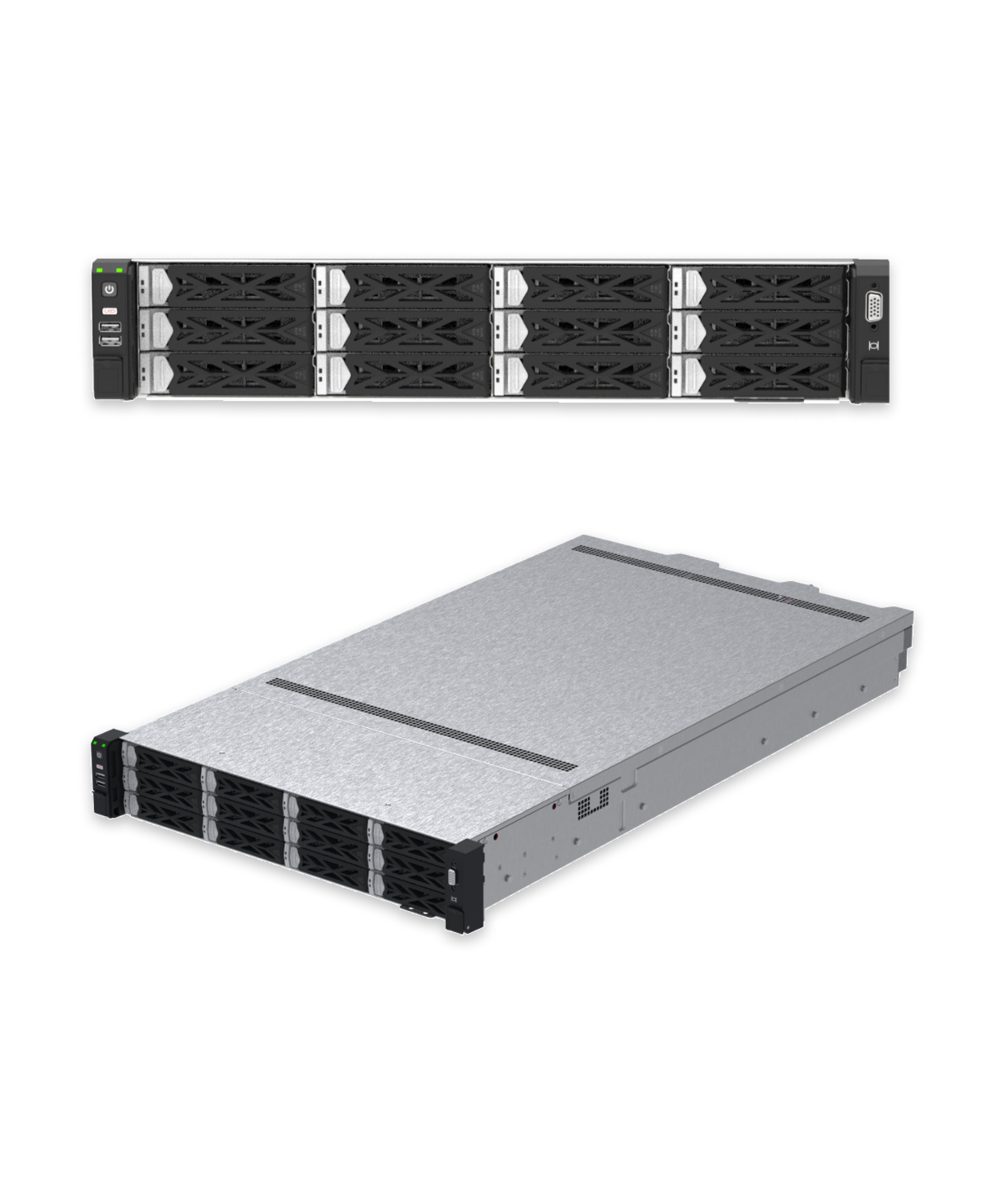

2U2S General Server

    • Based on Intel® Xeon® 4th and 5th generation scalable processors with up to 350W TDP

    • 32DIMM slots support with up to 8TB of memory

    • CXL memory expansion on demand

    • Up to 12× 3.5-inch HDDs

    • Up to 28× 2.5-inch HDDs

    • Up to 8x standard PCIe slot and 1x OCP 3.0 slot

    • Up to 2x DW GPU slots

Server Specs

CPU

  • 2x Intel® Xeon® 4th & 5th SPR/EMR Processors up to 350W

Memory

  • Up to 32x DDR5 RDIMM Slots, up to 5600MT/s, support RDIMMs & LRDIMMs

Storage

  • Front:

    • 12x LFF SATA/SAS/NVMe

    • 24x SFF SATA/SAS/NVMe

  • Internal: 2x 2280 M.2 (SATA/NVMe) onboard slots

  • Rear: 4x SFF SATA/SAS/NVMe

PCIe Extension

  • Option 1: 2x PCIe5.0 x16 FHFL + 4x PCIe4.0 x 8 FHHL

  • Option 2: 2x PCIe5.0 x16 FHFL + 2x PCIe4.0 x16 FHHL + 2x PCIe4.0 x8 FHHL

  • OCP3.0

Enclosure management

  • BMC: AST2600, 1x dedicated RJ45 MGMT port

IO

  • Front IO:

    • 12x USB3.0 Type-A Receptacles

    • 1x PWR BTN with 1x PWR Indicator

    • 1x Status LED

    • 1x VGA

    • 2x UID button & LED

  • Rear IO:

    • 2x USB3.0 Type-A Receptacles

    • 1x VGA

    • 1x UART Port Over RJ45

    • 1x UID button & LED

    • 2x 1000 Base-T onboard LAN Ports

    • 1x GbE MGMT Port (Not both Front MGMT Ports)

PSU

  • 1+1 Redundancy (1300W / 1600W / 2000W)

Cooling

  • 4x 8056 FANs, N+1 Redundancy

Operating Temp

  • 5°C - 35°C

Dimensions

  • 86mm (H) x 447mm (W) x 815mm (D)
